In the world of heterogeneous catalysis, zeolites remain indispensable. They combine high surface area, robust framework stability, and unique pore structures that allow them to act as “molecular sieves.” Among them, ZSM-22 (TON framework) has emerged as a powerful material designed to overcome one of the most persistent issues in catalytic processes: the balance between diffusion efficiency and product selectivity.
This article takes a deep dive into ZSM-22, exploring its structural features, industrial relevance, and problem-solving role compared to more established zeolites such as ZSM-5. We will also analyze its applications in isomerization, clean fuel production, and specialty chemical synthesis, while addressing how industries can leverage its advantages for economic and environmental gains.
Zeolites are crystalline aluminosilicates with well-defined microporous structures. Their catalytic properties stem from:
High acidity (Bronsted and Lewis acid sites).
Shape selectivity, determined by pore geometry.
Thermal and hydrothermal stability, enabling operation in demanding conditions.
For decades, ZSM-5 (MFI framework) dominated the catalytic landscape due to its three-dimensional pore system. It enabled breakthroughs in aromatic production, FCC (Fluid Catalytic Cracking), and olefin transformations. However, as refining and petrochemical industries evolved, two limitations of MFI-type zeolites became apparent:
Diffusion Constraints – molecules often face bottlenecks within the intersecting pore network, causing secondary reactions or coke formation.
Selectivity Trade-offs – high reactivity comes at the cost of undesired side-products, reducing yield efficiency.
This set the stage for one-dimensional zeolites like ZSM-22 to enter the spotlight.
ZSM-22, discovered in the early 1980s, belongs to the TON family of zeolites. Its defining characteristics are:
Pore system: One-dimensional, straight 10-membered ring channels (~0.45 × 0.55 nm).
No large intersections: Unlike ZSM-5, the channels are unidirectional, minimizing congestion.
High Si/Al ratios: Allowing tunable acidity for various applications.
Thermal robustness: Stable under severe hydroisomerization conditions.
The linear TON channels mean that molecules enter, react, and exit more smoothly, with significantly fewer secondary reactions. This structure makes ZSM-22 ideal for reactions where shape-selectivity and minimized diffusion constraints are crucial.
The Problem: In conventional catalysts like ZSM-5, molecules can become “trapped” in channel intersections, slowing down reaction rates and increasing coke formation.
ZSM-22 Advantage: Its straight, one-dimensional channels reduce residence time. Molecules have a clear path, enhancing diffusion efficiency and lowering the chance of undesired reactions.
The Problem: Achieving high selectivity in isomerization or hydrocracking is difficult due to competing pathways inside zeolite pores.
ZSM-22 Advantage: Its narrow 10-membered channels selectively accommodate linear chains while rejecting bulky intermediates. This results in:
Higher yield of monobranched isomers (ideal for improving octane number).
Lower formation of heavy, branched, or aromatic by-products.
The Problem: Coke deposition and framework collapse shorten catalyst lifetime, increasing costs.
ZSM-22 Advantage:
Reduced secondary reactions limit coke formation.
High silica content improves hydrothermal stability.
Longer operating cycles lower regeneration frequency.
The Problem: Stricter fuel regulations (Euro VI, IMO, EPA standards) demand ultra-clean fuels with low sulfur and optimized cold-flow properties.
ZSM-22 Advantage: Its role in hydroisomerization of long-chain paraffins directly addresses these needs, producing fuels with:
Improved cold-flow properties.
Lower aromatic content.
Better energy efficiency.
ZSM-22 is widely used in the production of low pour-point diesel and lubricants. The TON framework enables selective isomerization of n-paraffins into monobranched isomers, enhancing fuel flowability without excessive cracking.
By selectively converting linear hydrocarbons, ZSM-22 contributes to the manufacture of high-octane blending components for gasoline, improving engine performance and efficiency.
The linear selectivity of ZSM-22 ensures that base oil molecules achieve optimal viscosity and thermal stability, essential for automotive and industrial lubricants.
ZSM-22 shows promise in selective alkylation, skeletal isomerization, and transformation of biomass-derived molecules, aligning with green chemistry initiatives.
It’s important to note that ZSM-22 does not “replace” ZSM-5 but complements it. While ZSM-5 remains valuable for aromatization and cracking, ZSM-22 is superior where:
Diffusion control is critical.
Linear selectivity is desired.
Coke resistance enhances longevity.
Thus, an integrated refinery strategy often leverages both materials depending on process requirements.
The global shift towards sustainable fuels and higher efficiency means demand for ZSM-22 is expected to grow. Industry analysts highlight:
Rising need for clean diesel and aviation fuel.
Expansion of biomass-to-fuel processes requiring selective catalysts.
Growing market for lubricants in electric vehicles (EVs), where base oil quality is critical.

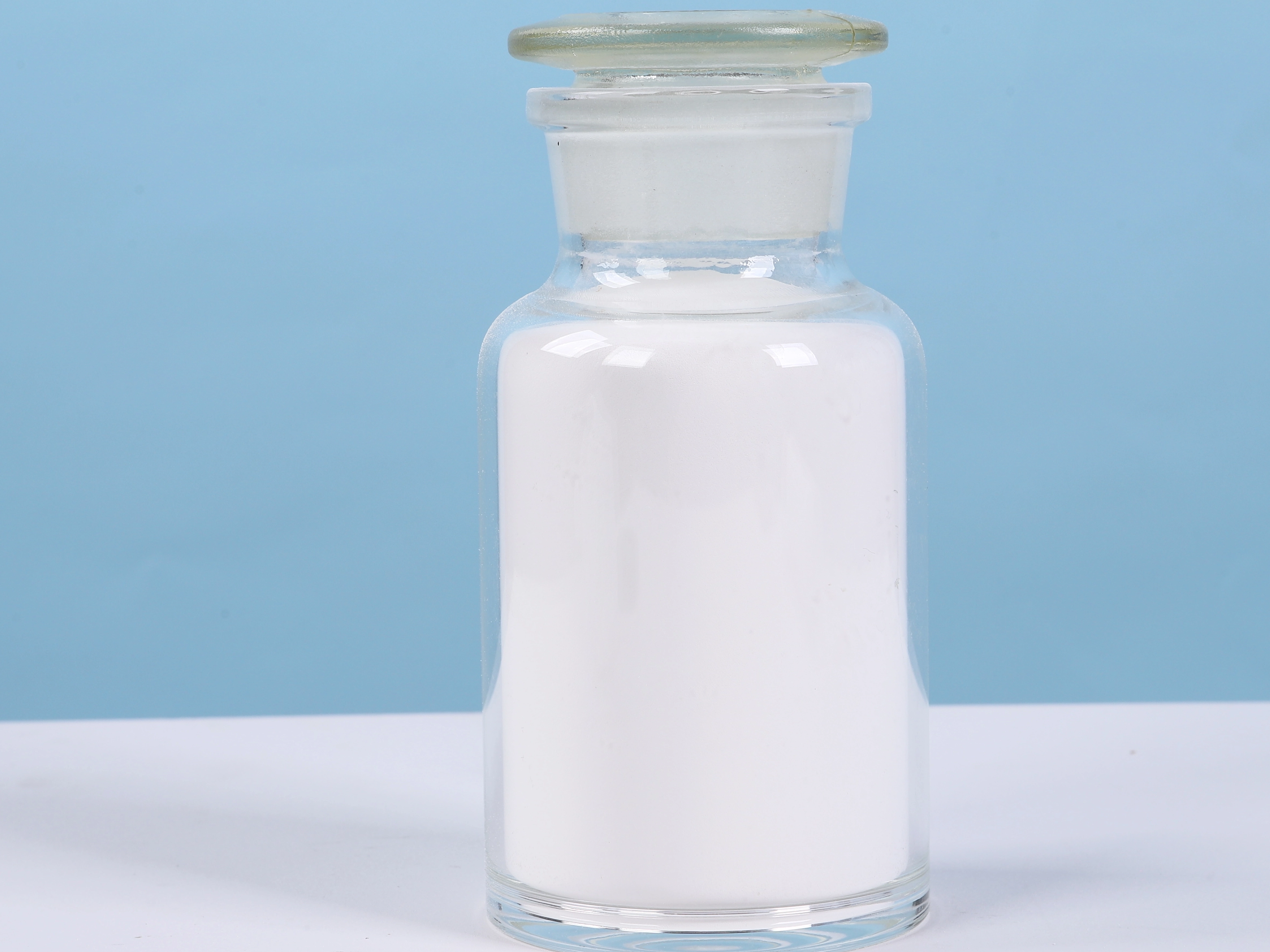

Our company plans to introduce a new line of ZSM-22 products, tailored for diverse industrial requirements, ensuring flexibility in Si/Al ratios, particle sizes, and modification strategies to optimize performance across applications.
ZSM-22 is not merely a new zeolite—it represents a strategic solution to some of the most pressing industrial catalytic challenges. By mitigating diffusion limitations, enhancing selectivity, and aligning with environmental demands, it is poised to become a cornerstone in refining, petrochemical, and sustainable fuel industries.
As industries adapt to stricter regulations and evolving market needs, adopting advanced zeolites like ZSM-22 will be essential for maintaining competitiveness.
Q1: What makes ZSM-22 different from ZSM-5?
ZSM-5 has a 3D pore network, while ZSM-22 has 1D straight channels. This gives ZSM-22 advantages in diffusion efficiency and selectivity for linear molecules.
Q2: Why is ZSM-22 important for clean fuel production?
Its ability to isomerize long-chain paraffins into monobranched isomers helps produce fuels with lower pour points and improved environmental performance.
Q3: Can ZSM-22 replace ZSM-5 entirely?
No. ZSM-22 complements ZSM-5. ZSM-5 is excellent for aromatization and cracking, while ZSM-22 excels in selective isomerization and diffusion-limited processes.
Q4: How does ZSM-22 contribute to catalyst lifetime?
By reducing secondary reactions and coke deposition, ZSM-22 catalysts last longer and require fewer regenerations, lowering operational costs.
Q5: What industries benefit most from ZSM-22?
Refineries, petrochemicals, lubricant manufacturers, and emerging green fuel producers are the main beneficiaries.
Q6: Will your company offer customized ZSM-22 products?
Yes. We plan to introduce ZSM-22 with tailored Si/Al ratios, crystal morphologies, and modifications to suit diverse industrial processes.
Q7: How does ZSM-22 align with sustainability goals?
It improves fuel efficiency, reduces environmental pollutants, and has potential in biomass conversion, supporting global decarbonization strategies.
